The WetBase® Standard wet room shower tray simplifies installation, serving as an easy-to-fit former. Featuring a traditional square drain outlet, this unit offers flexibility with a 50mm trimming allowance on all sides. Supplied complete with the reliable Dallmer fast flow drain.

SPECIFICATION	SUITABLE FOR	NOT SUITABLE FOR
1200 x 760 x 20mm	Wood or concrete subfloor	Vinyl flooring
Square drain style	Tiled floor finish	Micro cement
OFFSET drain position	Underfloor heating	Wheelchairs
Under support required	Wet rooms	Direct to joists
Trim by 50mm off each side	Level access
Complete with drain
20 Year guarantee

The Wetrooms Online WetBase® Standard wet room floor / shower tray is an easy to install ‘walk in shower’ pre base, with a classic square design drain outlet. This kit comes complete with a Dallmer fast flow drain and stainless steel grill.

Optional Mapei 4m/5kg liquid based (no mixing required) tanking kit for waterproofing the tray area or a complete Tanking, Fixing & Sealing Kit for fixing the WetBase®, waterproofing the floor and walls in addition to sealing the perimeter of the tray where it meets the wall / surrounding floor. The perfect solution for installing a wet room or walk in shower. Available at a discounted price when purchased with a wet room tray.

Designed and manufactured in Germany, the WetBase® Standard is a premium wet room floor former, featuring an inbuilt fall (2%) to the drain. The tray can be trimmed by up to 50mm off each edge of the tray. Suitable for installation in both wooden and concrete floors, the WetBase® standard is designed to be installed flush to the surrounding floor (the surrounding floor level will need to be raised with Tile Backer Insulation Board), and over tiled to create a level access showering area. 20 year guarantee when installed in accordance to the instructions.

The Dallmer fast flow drain is designed to be connected to a standard 43mm (1 ½ inch) waste water pipe and secured in place using solvent weld.
Please see the WetBase® Shower Tray FAQ's for further details on the drain connection, and answers to more, common WetBase® installation questions.

Drain Cover Options:

A number of options are available for the WetBase Standard wet room shower tray. As standard the tray comes with a pressed stainless steel cover. This can be upgraded to a coloured option as follows: Stainless Steel, Matt Black, Rose Gold, Satin Gold, Satin Copper, Satin Bronze, Satin Nickel & Satin Brass.

Standard Cover Colour Options For a more luxury finish, the cover can be upgraded to a Octad drain cover. Manufactured for Wetrooms Online from 5mm thick stainless steel. Laser cut for a clean, precision finish.

The Octad covers are available in the following colours:
Stainless Steel, Matt Black, Rose Gold, Satin Gold, Satin Copper, Satin Bronze, Satin Nickel & Satin Brass.

Octad Colour Options

We can also bespoke colour match using a RAL code or sample. Please note bespoke finishes are non-returnable - Please call 0800 280 8008 to discuss bespoke finishes.

We try to ensure that colours are as true to color as possible. However, due to inconsistencies of monitors, lighting sources, digital photography and the physical product etc, we cannot guarantee that the colour you see on your screen accurately portrays the true color of the product. Colours are intended as a guide only and should not be regarded as absolutely correct. Samples can be viewed at our trade counter.

WetBase® Wet Room Kit Contents:

1 x 1200 x 760 WetBase® tray 20mm deep, 2% fall.
1 x Fast flow drain (horizontal outlet) with standard stainless steel grid
Fitting Instructions
Optional 5KG Tanking Kit: Mapei 4m Tanking Kit OR Tanking, Fixing & Sealing Kit:

Jackoboard Tanking Kit:

1 x 4KG Tanking liquid
1 x 1 Litre Primer Liquid
1 x 10 metre tape for floor/tray joints

Tanking, Fixing & Sealing Kit:

1 x Mapei 4m Tanking Kit
1 x 10 kg Britflex S1 Rapidset flexible adhesive
1 x 290ml Jackoboard Board Fix Sealant
1 x 10m Extra Sealing Tape for Walls and Floor
2 x Internal Corners

Have a question about the WetBase® or fitting it?

If you have a question about the WetBase® or the fitting of it please see the following help articles:

Choosing the Correct Wet Room Tray
WetBase® Shower Tray FAQ's
WetBase® Shower Tray Fitting Instructions
Wet Room FAQ's

Mapei Tanking Instructions

If you cant find an answer to your question in the above documents, or need further help or advice, please give our experts a call on 0800 280 8008, use the live chat function (in the bottom right corner) or send an email to info@wetrooms-online.com

1200 x 760mm

WetBase® Wet Room Walk In Shower Tray Kit - OFFSET DRAIN - 1200 x 760 x 20mm

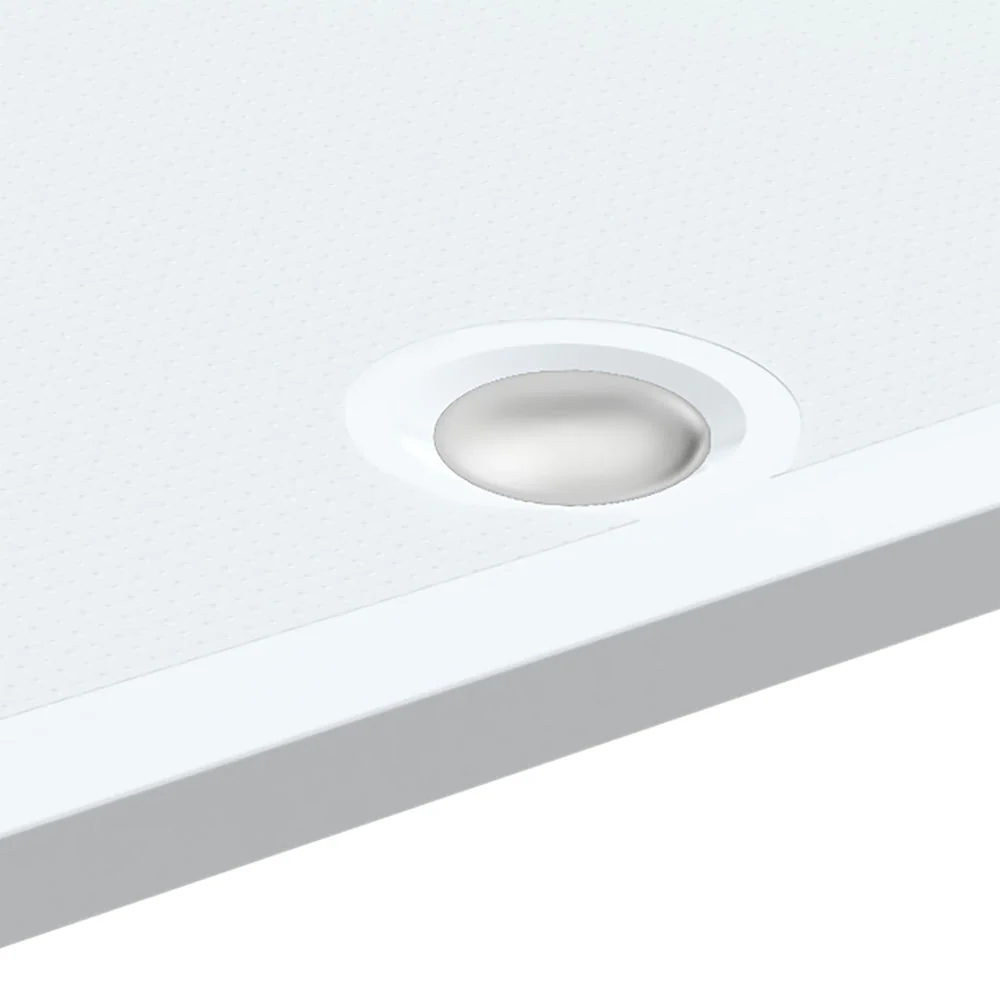

Roman Stone Solid Surface Anti Slip Shower Tray - 1200 x 760 x 40mm
