Specification

Suitable For

Not Suitable For

1135 x 770 x 22mm
UNDER-SUPPORT NOT REQUIRED
CHOOSE DRAIN (TILED, VINYL & PUMPED OPTIONS)
ROTATE DRAIN PLATE TO CHANGE DRAIN POSITION
SUPPORTS UP TO 381KG
CAN BE TRIMMED TO 150MM OF DRAIN PLATE
RIBBED UNDERSIDE
LIFETIME GUARANTEE*

WOOD OR CONCRETE SUBFLOOR
TILED FLOOR FINISH
VINYL FLOOR FINISH
WET ROOMS
LEVEL ACCESS
RAISED ON PLATFORM
USE WITH WHEELCHAIRS
FITTING DIRECT ON JOISTS
UNDERFLOOR HEATING

MICRO CEMENT

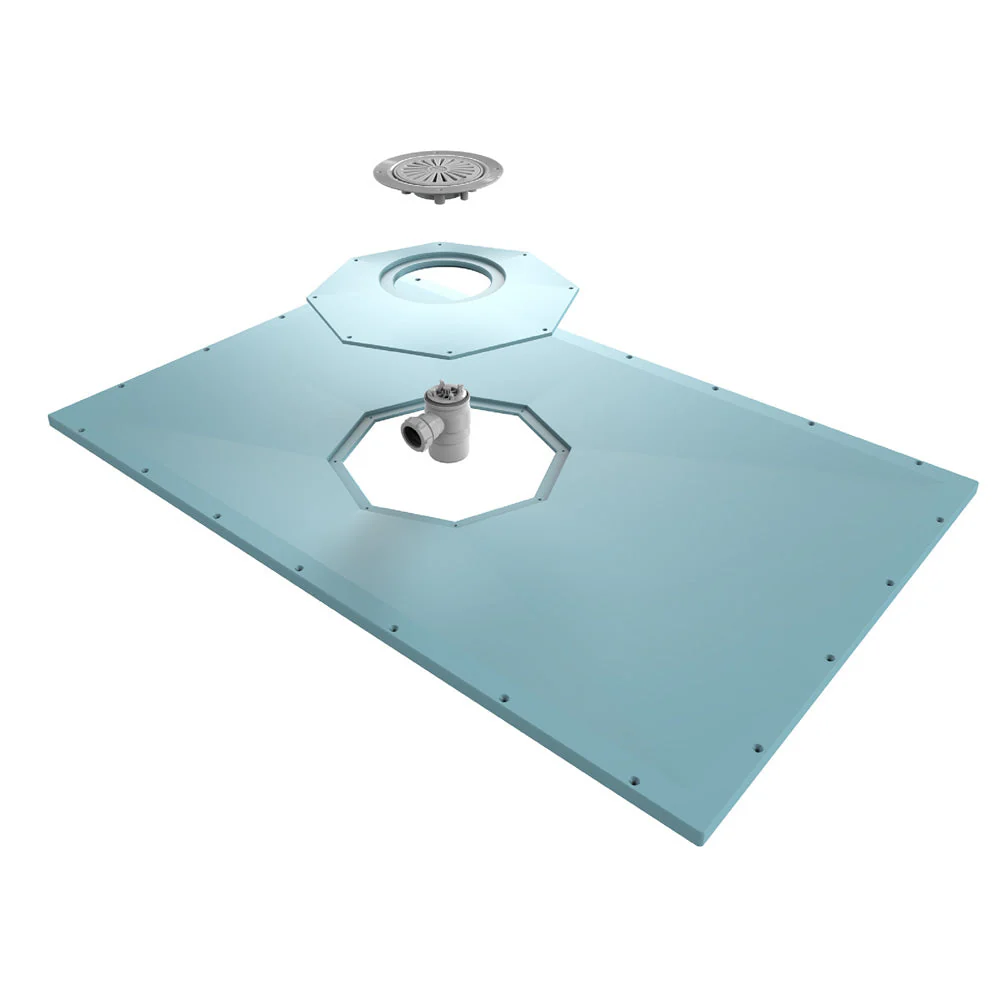

Tuff Form8 is a level-access wet room former from AKW, it combines all of the original Tuff Form’s benefits with a brand new fitting innovation to create AKW's best, most uncompromising wetroom former to date. Designed for incredibly easy installation, Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also provides the increasingly popular option of placing the waste in the centre of the tray.

Designed for incredibly easy installation, the AKW Tuff Form8’s innovative rotating octagonal plate provides 15 different waste positions to avoid all obstructing joists during installation. It also
provides the increasingly popular option of placing the waste in the centre of the tray. The design of the octagonal plate maintains the fall to maximise drainage and eliminate pooling water.

Made from high strength Sheet Moulding Compound (SMC), the quality build and versatility of Tuff Form8 wet room former gives the option of tiling or installing vinyl safety flooring.
Installation is quick and easy as Tuff Form8 has pre-formed fixing points, therefore no measuring is required. An improved weight limit of 381kg / 60 Stone and a lifetime guarantee, the AKW Tuff Form8 has all you need to make the perfect wet room / walk in shower.

Specification:

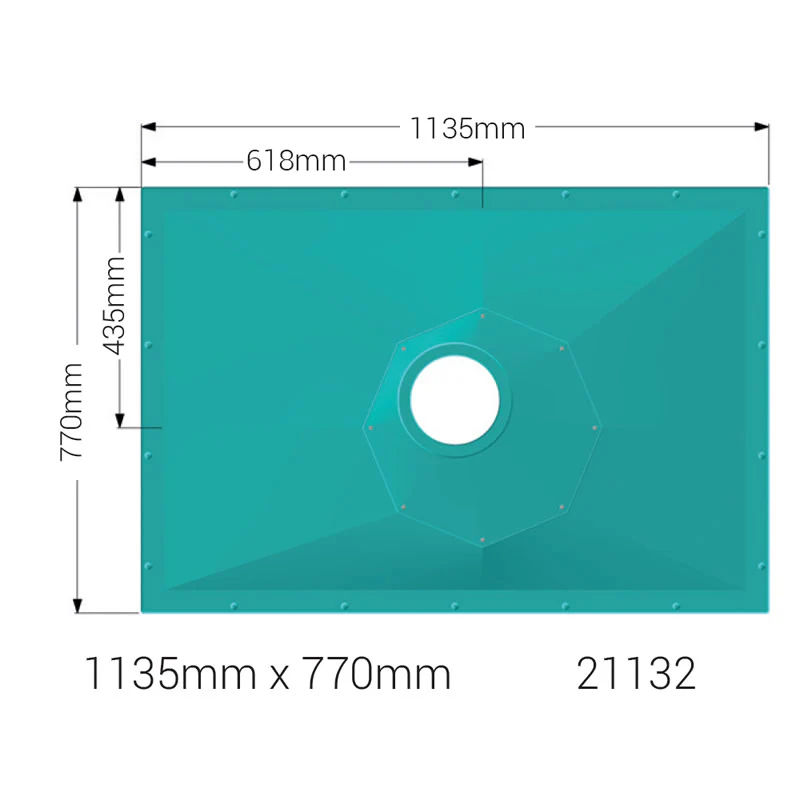

Size 1135 x 770 x 22mm
Thickness: 22mm to suit the 18mm UK timber floor board + 4mm plywood, no extra adjustment needed for installation
Strength: 60 stone (381kg) on joists/ Unlimited on concrete
Manufacturing technique: Compression moulding
Recyclability: Recyclable

Features:

Rotatable waste position
Wide selection of waste options
Suitable for both wooden and concrete floor
Easily trimmable within 150mm from the octagonal plate
No need for under boarding
Pre-formed fixing holes
User friendly step-by-step installation guide
Suitable for use with underfloor heating
Ribbed underside structure
Durably supported for up to 60 stones on timber joists
Level-access with large size options
High strength GRP
Well-engineered 1:16 gradient

Benefits:

Suitable for all UK joist patterns, the adjustable waste positions avoid all obstructing joists
No water pooling in the shower area thanks to the octagonal plate design that provides a continual fall all the way to the waste
Ability to remove octagonal plate makes for quick and easy installation of pipework
Waste installation requires no tedious screw hole drilling
Quick and easy installation
Ribbed underside eliminates slippage or float during installation
Versatile applications
Peace of mind for long term use
Designed with a variety of end-users in mind, able to support chair users and carers
A solid support by the cutting-edge SMC-GRP (Sheet moulding Compound -Glass Reinforced Plastic) composite technology, enabling easy transportation and installation.

Copy from Here (this label will be hidden)

To Here (this label will be hidden)

1135 x 770mm

AKW Tuff Form8 Wet Room Walk In Shower Tray 1135 x 770 x 22mm
